GroMet Primary-efficiency Washable Plate Filter


 Product features


GroMet is specifically designed for use in HVAC systems for industrial and commercial use,  such as:

1.Ventilation and air conditioning systems for office buildings, conference rooms, hospitals,  shopping malls, gymnasiums, airports and other large civil buildings.

2.Centralized HVAC systems for general industrial plants.

3.Pre-filtration of the centralized ventilation and air conditioning systems for cleanrooms.

The multi-layer corrugated aluminum mesh structure is designed to achieve a comprehensive  filtration effect, which can capture and absorb dust polluting the air through the three-dimensional pleated aluminum mesh filter layer. Besides, the corrugated aluminum mesh has sufficient  dust holding space between layers, and features a very high dust holding capacity.

GroMet's lightweight plate structure and precision aluminum mesh structure create high dust  holding capacity and unique moisture resistance, while also greatly reducing filter replacement  and maintenance costs:

1.Reduce filter normal cleaning and maintenance frequency.

2.Greatly reduce the risk of fire.

3.Proficient easy heat dissipation can extend the life of the fan motor.

GroMet can be cleaned and reused by blowing with compressed air. It is also possible to use  a solution containing detergent for limited cleaning of the filter for reuse.

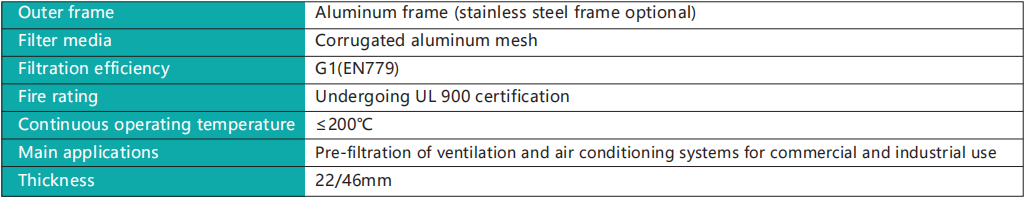

 Specifications

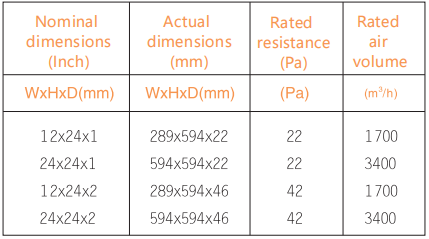

 Dimensions

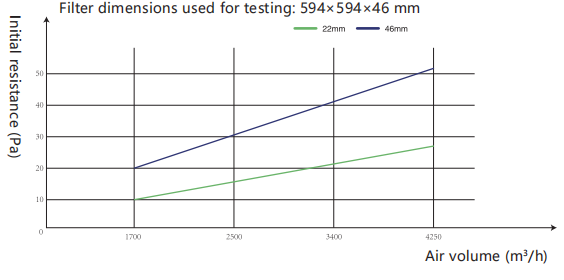

 Initial resistance - air speed relationship graph

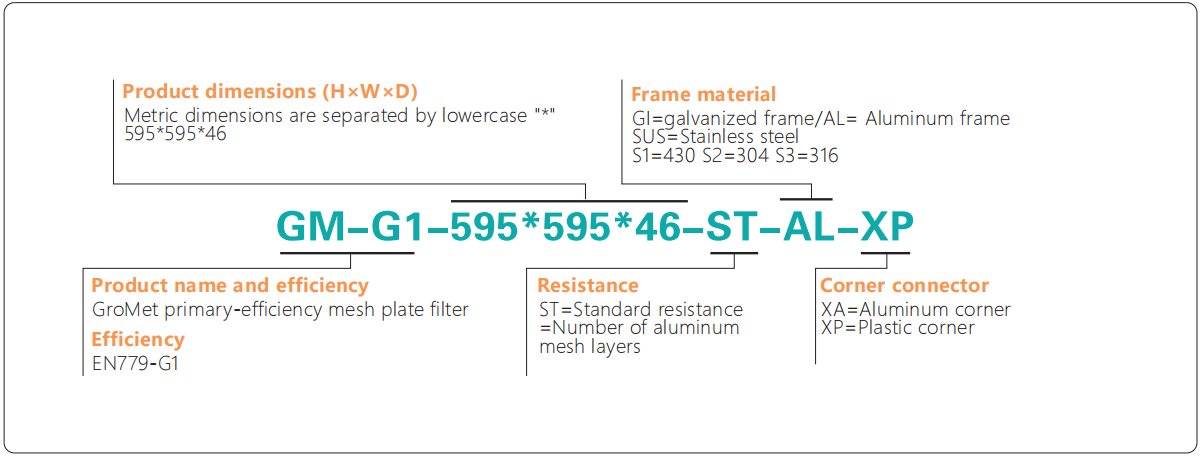

 Naming rules

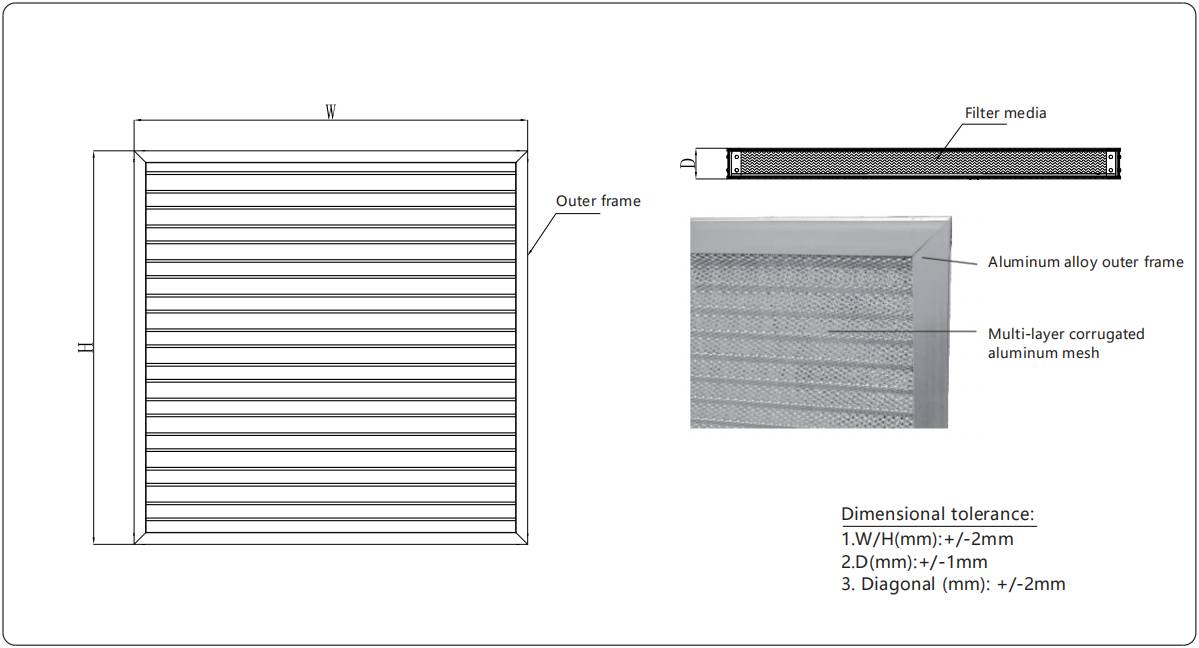

 Drawing
