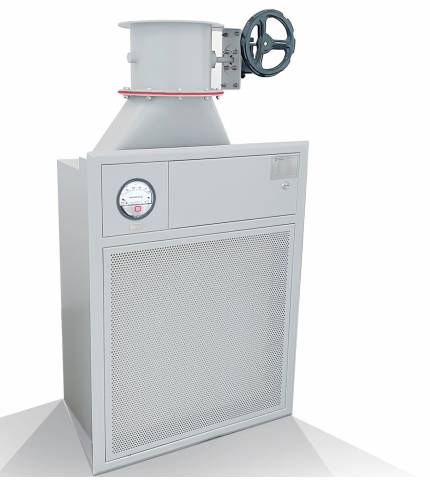

The high-efficiency return air box, also called high-efficiency exhaust air box, is a high-efficiency filtration device  for cleanroom exhaust section, mainly used in pharmaceutical, food, biological laboratory, hospital and other fields. It  is composed of cabinet, HEPA filter, return/exhaust air panel, etc.

The high-efficiency return air box is the exhaust device of the negative pressure cleanroom, used for the return air  filtration of negative pressure workshop, to isolate toxic and harmful, carcinogenic, radioactive and bio-hazardous dust  and gas, and prevents indoor harmful substances from being discharged into the return air exhaust system. It is mainly  used in pharmaceutical, food, biological laboratory, hospital and other fields.

For polluted gas produced by the production activities in the cleanroom, the equipment is called the high-efficiency return air box when the filtered gas is connected to the return air duct, or called the high-efficiency exhaust air box  when the filtered gas is connected to the exhaust duct. The high-efficiency return air outlet/exhaust air outlet mainly  consists of the cabinet, HEPA filter, return/exhaust air panel, etc.

Technical characteristics of high-efficiency  return/exhaust air box

The cabinet is seamlessly welded to ensure good airtightness.

The return/exhaust air panels are available in various forms: full-hole panel, louvered panel,  and homogeneous flow  film panel.

The return/exhaust air panels adopt a special structure for fixed and concealed installation,  enjoying easy disassembly, beautiful appearance and easy cleaning. The differential pressure  gauge monitors the HEPA filter resistance in real time.

It supports in-situ automatic scanning for leak detection and in-situ online disinfection. The UV sterilizer, air volume adjustment valve, automatic scanning device, etc. are optional. Filter efficiency classes can be selected according to indoor cleanliness requirements.

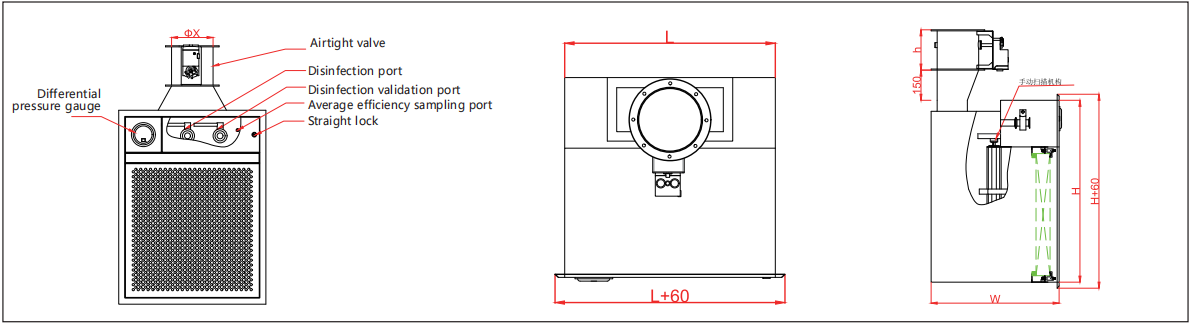

Technical scheme drawing：

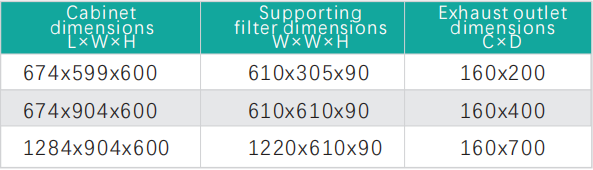

Main technical parameters：

◆ Stainless steel, resistant to acid and alkali corrosion, with the conventional pressure resistance of 2.5 Kpa

◆ Seamlessly welded cabinet, to ensure good airtightness

◆ Leakage rate of less than 0.1% when testing at 1 Kpa pressure, complying with the national standard requirements

◆ Real-time monitoring of HEPA filter resistance through the differential pressure gauge

◆ In-situ automatic scanning for leak detection and in-situ online disinfection.

◆ Optional UV sterilizer, air volume adjustment valve, automatic scanning device, etc.

◆ HEPA filter efficiency of 99.95%, which can also be selected according to the indoor air quality

◆ Special filters such as chemical filters required
